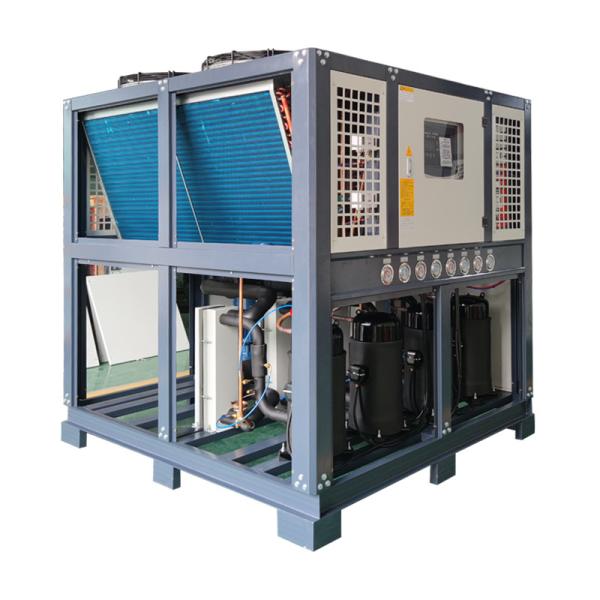

BZY40HP air-Cooled Chiller Danfoss Scroll Compressor R410A
40HP air-cooled plate exchange chiller Best Industrial Chillers for Temperature Control in Manufacturing
Product Description
40HP Industrial Air Cooled Water Chiller for Plastic Injection Molds Water Cooling System
Industrial chillers are widely used in various industrial productions, such as rubber and plastics, electronic manufacturing, electroplating, chemistry, ultrasonic and printing, etc. The cooling of plastic products significantly improves their smoothness, reduces surface defects and internal stress, prevents deformation due to shrinkage of surface defects and internal stress, and improves production efficiency and product quality.
Industrial Chiller Specification:
| Model Item | BZY-40A |
| Nominal cooling capacity | Kcal/h | 103200 |
| kw | 120 |
| Power supply | 3PH220V~415V50HZ/60HZ |
| Refrigerant | Type | R22/R407C/R134A/R410A/R404A |
| Type of control | Expansion valve |
| Compressor | Type | Hermetic scroll type |
| Power (HP) | 40 |
| Condenser | Type | Finned copper tube+low noise outer rotor fan |
| Power(kw) | 0.7*4 |
| Cooling air flow(m3 /h) | 47200 |
| Evaporator | Type | Plate Heat Exchanger |
| Chilled water flow(m3 /h) | 42 |
| Water Tank Capacity(L) | 350L |
| Inlet/outlet pipe chiller(inch) | 3 |
| Water pump | Power(kw) | 3.75 |
| Lift(m) | 20 |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection |
| Net weight | KG | 1200 |
| Machine size(mm) | mm | 1910*1700*1650 |
Features:
-
High efficiency and energy saving, the COP can reach 4.0.
-
Compact size, small occupied area.
-
304 stainless steel evaporator, longer service life
-
120kw of cooling capacity, customization available.
Product Highlights:
air-cooled chillers all use compressors from internationally renowned brands, which are 20-30% more energy efficient than reciprocating compressors. They have the advantages of stable and reliable operation, high efficiency and low failure, low vibration and noise, easy maintenance, and a long service life.
The air-cooled chiller uses a plate heat exchanger, which has a higher heat exchange efficiency. The refrigerant evaporates in the heat exchange tube, and the water flows on the inner side of the copper tube, which improves the heat exchange efficiency. In addition, in order to maintain a stable working temperature, the evaporator shell is covered with insulation material, and the heat exchange tube uses a high-efficiency seamless copper tube. The groove inside the tube forms an internal threaded fin to increase the heat exchange area with the refrigerant. Through this technology, the heat transfer area is doubled, greatly improving the heat transfer efficiency.
FAQ:
Q: Can The air-cooled chiller Be Customized ?
A: Of course, we will carefully customize the air cooling chiller according to your requirements, and then conduct in-depth analysis.Finally, we promise to meet your expectations for this customization.
Q: How To Guarantee The Quality Of water cooling chiller ?
A: We have our own factory. We are experts in industrial chiller and have been operating for 20 years. We always adhere to the policy of "high quality, low price and all-round service".
Q: What About the water cooling chiller Warranty ?
A: If the parts of the industrial chiller fail or are damaged (except the worn parts due to quality problems) within one year from the factory, our company will provide these parts free of charge.
